Maykestag End Mills "Speedcut" – Universal, Long Series are made of the best micro-grain-carbide which produces higher hardness, heat endurance and bending strength. Maykestag manufactures Maykestag End Mills "Speedcut" – Universal, Long Series with the most up-to-date coating technology for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions).
Maykestag End Mills "Speedcut" – Universal, Long Series are highly recommended for machining hardened and high tensile steels. It offers high cutting performance for fine-finishing, finishing, rough finishing and roughing – all with the same tool. Maykestag End Mills "Speedcut" – Universal, Long Series also have different spiral angle which creates smooth, vibrationless running and excellent surface. It is suitable for stainless steel, cast iron, and titanium materials with tensile strength up to 1300 N/mm2, even the one with 45 HRC.
To serve your interest on Maykestag products, kindly contact our Sales Department
|

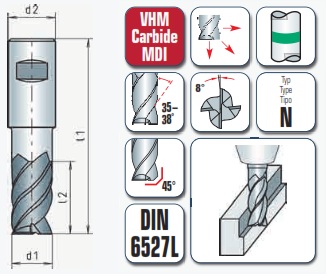

d1h10
mm
|
d2h6
mm
|
l1
mm
|
l2
mm
|
45⁰ |
Z |
| 3 |
6 |
57 |
8 |
0.15 |
4 |
| 4 |
6 |
57 |
11 |
0.15 |
4 |
| 5 |
6 |
57 |
13 |
0.25 |
4 |
| 6 |
6 |
57 |
13 |
0.25 |
4 |
| 8 |
8 |
63 |
19 |
0.25 |
4 |
| 10 |
10 |
72 |
22 |
0.25 |
4 |
| 12 |
12 |
83 |
26 |
0.25 |
4 |
| 14 |
14 |
83 |
26 |
0.35 |
4 |
| 16 |
16 |
92 |
32 |
0.35 |
4 |
| 20 |
20 |
104 |
38 |
0.35 |
4 |
|
MAYKESTAG END MILLS "SPEEDCUT" - UNIVERSAL, LONG SERIES DIN 6535-HB (SHANK)
-DIN 6535-HB (Shank)
-ALUNIT-S® (Special coating for highest cutting performance)
-ISO Certification: ALPEN-MAYKESTAG has been certified to EN ISO 9001 on all sites since 2000.
|
