Maykestag Hand Reamers are made of Austrian HSS micro-grain-carbide which produces higher toughness, hardness and bending strength. Maykestag manufactures Maykestag Hand Reamers with the most up-to-date coating technology for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions). Maykestag Hand Reamers are applicable for ferrous and non-ferrous material as well as soft and hard synthetic materials. Its slow helix type is suitable for interrupted borings, slots, cross-borings, etc. Maykestag Hand Reamers are recommended for various materials with tensile strength up to 1.300 N/mm2. To serve your…
Maykestag Hand Reamers are made of Austrian HSS micro-grain-carbide which produces higher toughness, hardness and bending strength. Maykestag manufactures Maykestag Hand Reamers with the most up-to-date coating technology for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions).
Maykestag Hand Reamers are applicable for ferrous and non-ferrous material as well as soft and hard synthetic materials. Its slow helix type is suitable for interrupted borings, slots, cross-borings, etc. Maykestag Hand Reamers are recommended for various materials with tensile strength up to 1.300 N/mm2.
To serve your interest on Maykestag products, kindly contact our Sales Department

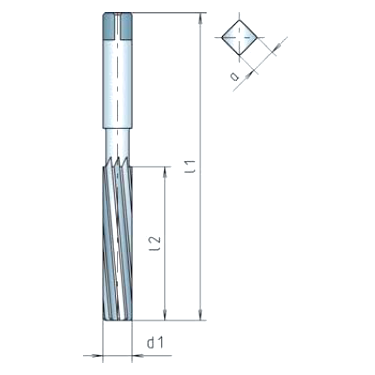

Ø mm | l1 | l2 | a | Z |
2.00 | 50 | 25 | 1.60 | 4 |
2.50 | 58 | 29 | 2.10 | 4 |
3.00 | 62 | 31 | 2.10 | 6 |
3.50 | 71 | 35 | 2.70 | 6 |
4.00 | 76 | 38 | 3.00 | 6 |
4.50 | 81 | 41 | 3.40 | 6 |
5.00 | 87 | 44 | 3.80 | 6 |
5.50 | 93 | 47 | 4.30 | 6 |
6.00 | 93 | 47 | 4.30 | 6 |
7.00 | 107 | 54 | 5.5 | 6 |
8.00 | 115 | 58 | 6.20 | 6 |
9.00 | 124 | 62 | 7.00 | 6 |
10.00 | 133 | 66 | 8.00 | 6 |
11.00 | 142 | 71 | 9.00 | 6 |
12.00 | 152 | 76 | 10.00 | 6 |
13.00 | 152 | 76 | 10.00 | 6 |
14.00 | 163 | 81 | 11.00 | 6 |
15.00 | 163 | 81 | 11.00 | 6 |
16.00 | 175 | 87 | 12.00 | 6 |
17.00 | 175 | 87 | 12.00 | 6 |
18.00 | 188 | 93 | 14.50 | 6 |
19.00 | 188 | 93 | 14.50 | 6 |
20.00 | 201 | 100 | 16.00 | 6 |
22.00 | 215 | 107 | 18.00 | 8 |
24.00 | 231 | 115 | 20.00 | 8 |
MAYKESTAG HAND REAMERS DIN 206 B
