Käfer Digital Dial Gauges MD 12 T

Käfer Digital Dial Gauges MD 12 T are devised to accurately measure small distances and angles, and amplify them to make them more obvious reading. Compared to the analogue version, the new Käfer Digital Dial Gauges MD 12 T is engineered with Sylvac Swiss made electronics for your quality assurance at a faster rate of measurement and data connection. It will encourage you to easily interpolate the dial gauge swiftly for any application. The digital display with its large numerals along with function and display section which can be rotated through 270° makes it very convenient for any application.

By having a Käfer Digital Dial Gauges MD 12 T, you can have the reliability, durability and repetitive consistency with maximum error of 10 μm / .0004” ± 1 Digit. Its metal collet attachment guarantees reliable fixing of the dial gauge while the matt chromed base itself is hardened and lapped for higher accuracy. Käfer Digital Dial Gauges MD 12 T are highly regarded in general engineering, tool-making, especially on inspection jig and fixture apparatus.

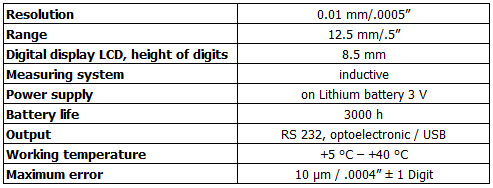

Käfer Digital Dial Gauges MD 12 T features:

• Range 12.5 mm / .5”
• The sturdy construction guarantees precision and reliability.
• Following functions of the Digital Dial Gauges MD 12 T and FMD 12 T can be used
• Zero setting Data transmission Selection of measuring direction mm/inch selection Ref I / Ref II
• Selection of reading (only FMD 12 T) with memory set Hold Preset value recall
• Data request by any ASCII CodeResolution 0.01 mm / .0005”
• Digital display LCD, height of digits 8.5 mm
• Measuring system inductive
• Power supply on Lithium battery 3 V
• Battery life 3000 h
• Output RS 232, optoelectronic / USB
• Working temperature +5 °C – +40 °C
• Maximum error 10 μm / .0004” ± 1 Digi.
• Supplied with Declaration of Conformity and Confirmation of Traceability.

To serve your interest on various Käfer products, kindly contact our Sales Department
