Maykestag End Mills - Short Series are made of Austrian HSS micro-grain-carbide which produces higher toughness, hardness and bending strength. Maykestag End Mills - Short Series are manufactured with the most up-to-date metallurgic infuser technology for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions). Maykestag End Mills - Short Series are also available with ALUNIT coating and uncoated model for affordable alternative in cutting ferrous material. It is highly recommended for milling in heavy duty materials up to a tensile strength of 1.300 N/mm2. Maykestag End Mills - Short Series are applicable for various materials, such as structural steels or alloyed tool steels, non-ferrous metals, cobalt- and nickel-alloys, as well as titanium and titanium-alloyed materials.
To serve your interest on Maykestag products, kindly contact our Sales Department

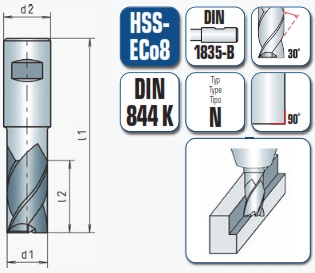

d1e8 mm |
d2h6 mm |
l1 mm |
l2 mm |
Z |
9,5 |
10 |
69 |
19 |
4 |
10 |
10 |
72 |
22 |
4 |
11 |
12 |
79 |
22 |
4 |
12 |
12 |
83 |
26 |
4 |
13 |
12 |
83 |
26 |
4 |
14 |
12 |
83 |
26 |
4 |
15 | 12 | 83 | 26 | 4 |
16 | 16 | 92 | 32 | 4 |
18 | 16 | 92 | 32 | 4 |
20 | 20 | 104 | 38 | 4 |
22 | 20 | 104 | 38 | 6 |
24 | 25 | 121 | 45 | 6 |
25 | 25 | 121 | 45 | 6 |
28 | 25 | 121 | 45 | 6 |
30 | 25 | 121 | 45 | 6 |
32 | 32 | 133 | 53 | 6 |
d1e8 mm |
d2h6 mm |
l1 mm |
l2 mm |
Z |
2 | 6 | 51 | 7 | 3 |
2,5 | 6 | 52 | 8 | 3 |
3 | 6 | 52 | 8 | 4 |
3,5 | 6 | 54 | 10 | 4 |
4 | 6 | 55 | 11 | 4 |
4,5 | 6 | 55 | 11 | 4 |
5 | 6 | 57 | 13 | 4 |
5,5 | 6 | 57 | 13 | 4 |
6 | 6 | 57 | 13 | 4 |
6,5 | 10 | 66 | 16 | 4 |
7 | 10 | 66 | 16 | 4 |
7,5 | 10 | 66 | 16 | 4 |
8 | 10 | 69 | 19 | 4 |
8,5 | 10 | 69 | 19 | 4 |
9 | 10 | 69 | 19 | 4 |
9.5 | 10 | 69 | 19 | 4 |
MAYKESTAG END MILLS - SHORT SERIES DIN 844 K
