Maykestag Quarter Circle Cutters are made of Austrian patented micro-grain-carbide which produces higher toughness, hardness and bending strength. Maykestag Quarter Circle Cutters are manufactured with the most up-to-date metallurgic infuser technology of 5% cobalt-alloyed high speed steel for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions). Maykestag Dovetail Cutters, with its quater circle knife, are robust end mills whose form leaves behind a seamless removal for a plane edge, chamfering or many other application on non ferrous metal. You can also resharpen it for a cost saving operation. Maykestag Quarter Circle Cutters are highly…
Maykestag Quarter Circle Cutters are made of Austrian patented micro-grain-carbide which produces higher toughness, hardness and bending strength. Maykestag Quarter Circle Cutters are manufactured with the most up-to-date metallurgic infuser technology of 5% cobalt-alloyed high speed steel for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions).
Maykestag Dovetail Cutters, with its quater circle knife, are robust end mills whose form leaves behind a seamless removal for a plane edge, chamfering or many other application on non ferrous metal. You can also resharpen it for a cost saving operation. Maykestag Quarter Circle Cutters are highly recommended for milling in construction steels, tempered steels and cementation steels with standard tensile strength up to 1.100 N/mm2 and short-chipping of nonferrous metals. Maykestag Quarter Circle Cutters are the best choice when you are making jigs, injection mould, machining vices and many more.
To serve your interest on Maykestag products, kindly contact our Sales Department

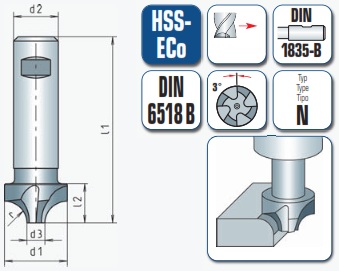

rH11 mm |
d1 mm |
d2h6 mm |
d3 mm |
l1 mm |
l2 mm |
Z |
1 | 8 | 10 | 6 | 60 | 10 | 4 |
2 | 10 | 10 | 6 | 60 | 15 | 4 |
3 | 12 | 12 | 6 | 60 | 11 | 4 |
4 | 14 | 12 | 6 | 60 | 11 | 4 |
5 | 16 | 12 | 6 | 60 | 11 | 4 |
6 | 20 | 16 | 8 | 67 | 14 | 4 |
Δ7 | 22 | 16 | 8 | 71 | 18 | 4 |
8 | 24 | 16 | 8 | 71 | 18 | 4 |
10 | 28 | 25 | 8 | 85 | 22 | 4 |
Δ= for an additional charge available with screwed shank. |
MAYKESTAG QUARTER CIRCLE CUTTERS DIN 6518 B
