SHIMPO Bottle Cap Torque Testing Unit DSP-5E

Nidec-Shimpo Corporation was built to contribute to the development of society and welfare of the general public all over the world by supplying highest quality products in sincere and enthusiastic dedication to the trinity of technology. One of the products offered by the company is Motorized Torque Unit - Shimpo DSP-5E.

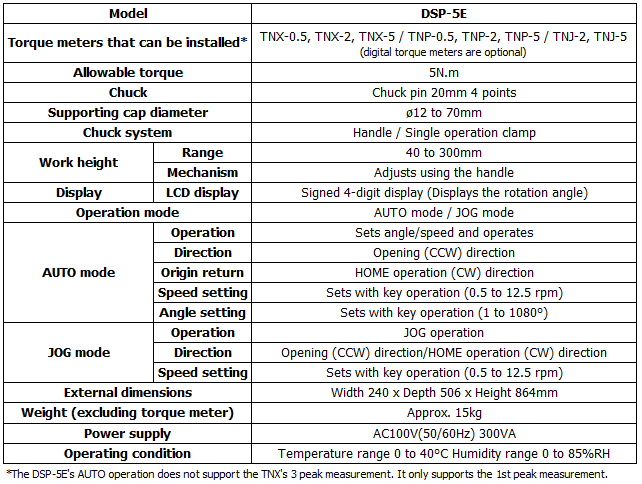

Shimpo DSP-5E (combined with Shimpo TNX Series, Shimpo TNP Series, or Shimpo TNJ Series) is devised to semi-automatically measure opening torques of caps, lids, and screws of various containers, such as cosmetics, medical products, and beverages, as well as the tightening force of valves. It is appropriate for sampling checks in production line because motorizing manual opening torque tests eliminates the variation of measurement torques generated by human error. Furthermore, an optional rotation angle and speed of the rotation axis for opening torque tests can also be set.

To serve your interest on Shimpo solutions, kindly contact our Sales Department
