SHIMPO FG-7000T DIGITAL TORQUE GAUGE

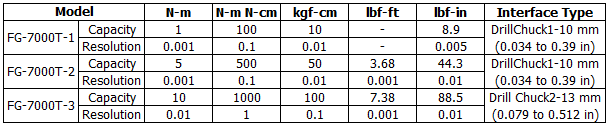

Nidec-Shimpo devised Shimpo FG-7000T Series digital torque gauges to provide testing flexibility with their external torque sensor input. Torque sensors with standard chuck adapter are immediately recognized when connected to the display base and are available for your specific testing needs in 1 N-m (9 in-lb) 5 N-m (44 in-lb), 10 N-m (88 in-lb) capacities. Four selectable modes of operation include: Track mode for live readings, Peak mode for displaying the maximum reading, First Peak where only the initial peak is recorded once a decrease is sensed and Preset which initiates user-programmed tolerance alarms for go/no go testing. The display has two selectable operations, numerical view with directional bar graph or graphical view with directional bar graph. In graphical view when alarm tolerances are set, the process is plotted in relation to the upper and lower limit graph lines. Combined with the go/no go icons, a simple pass/fail determination is recognized.

Shimpo FG-7000T Digital Torque Gauge instruments can create a data log of its reading at the push of a button for simple data acquisition or be set to continuous data storage. Data can be viewed on the screen, sent to the optional printer, or loaded to be analyzed and graphed on the free software program. The 1,000 point memory with definable groups allows for multiple tests to be recorded and easily separated upon loading. In addition, the comparator output can be set up for integration of the instrument into a quality system for repetitive testing such as on a production line.

Shimpo FG-7000T’ are designed to be a handheld device which fit perfectly in the operator’s hand for portable testing.  The large back-lit, 180° auto-reversible display, CW/CCW directional bar graph, combined with the dual labeled key pad allows for easily viewing of the screen on various angle to operate. Shimpo FG-7000T is the ideal torque instrument for various applications such as closing or opening test of gas containers, oil and gas pipe valves, torque of clamping system and door hardware, failure or destructive torque testing, or almost any torque testing requirement involving incoming quality inspection, finished goods testing to R&D.

Shimpo FG-7000T Digital Torque Gauge Features:

• Display operates in numerical or graph modes, both include a directional bar graph
• Graph mode combined with set point tolerances provides instant recognition of process relation to upper and lower limits
• Four Modes of Operation: Peak, First Peak Preset or Track Mode
• Memory with group categorization to easily separate your tests for review and later download
• Free software for viewing, graphing and analyzing data on PC
• Large, Backlit, Auto-Reversible display with various icons of test status aids user during testing
• Programmable High/Low tolerances combined with comparator NPN/PNP output allow usage in quality control production lines
