Nidec-Shimpo devised Shimpo MFD Series Mechanical Gauge as the economical MFD mechanical force gauges with dual kg/lb scales. Shimpo MFD Series are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications. The peak force operation mode features an easy push-button reset, especially helpful for repetitive testing in an assembly line or in quality control.

Shimpo MFD is equipped with a large dial indicator allows viewing of force changes as they occur. This large dial reduces the chance for parallax errors when taking readings. The Shimpo MFD Series was ergonomically designed for handheld use, but may also be used with the optional handle-great for loads over 15 pounds (6.8 kg). Due to its mechanical design, response time is immediate. Calibration is achieved by a set of precisely matched springs which are overload protected. All standard Series MFD gauges include a protective carrying case, calibration certificate, plus attachment adapters.

Shimpo MFD Series Mechanical Gauge features:

  • Dual kilogram (kg) and pound (lb) units allows flexible usage in testing to multiple standards
  • Precision gauge movement provides a quick response for instantaneous analysis
  • Measures Tension and Compression Forces – Only one gauge required
  • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
  • Smooth mechanical operation with precise action produces repetitive, proper readings
  • Peak Mode Reset is ideal for repetitive peak testing applications
  • Compact, light-weight, ergonomic design is perfect for handheld use
  • Rear threaded inserts makes it easy to mount to test stands
  • NIST traceable certificate of calibration (optional)



To serve your interest on Shimpo solutions, kindly contact our Sales Department

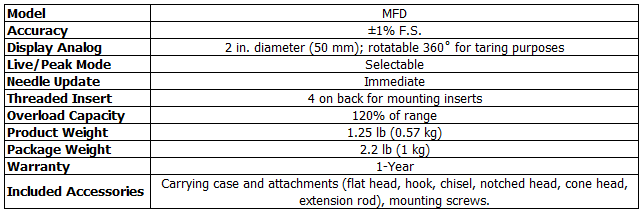

Shimpo MFD Series Mechanical Gauge

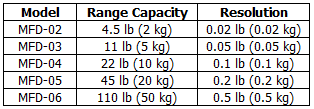

Shimpo MFD Series Mechanical Gauge Ordering details

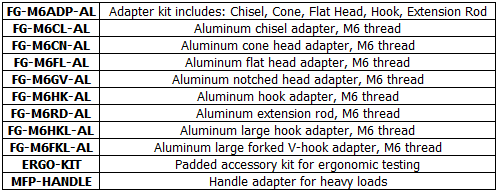

Shimpo MFD Series Mechanical Gauge Accessories
