With a wide measurement load up to 2500N and compatible with all Shimpo force gauges, the FGS-VC Motorized Test Stand is an ideal solution for most applications.

Simple Operation similar to the FGS-E series, but with data output capability.

5 action modes

  • Manual
  • Short movement
  • 1 Cycle
  • Return repetition
  • Point position movement

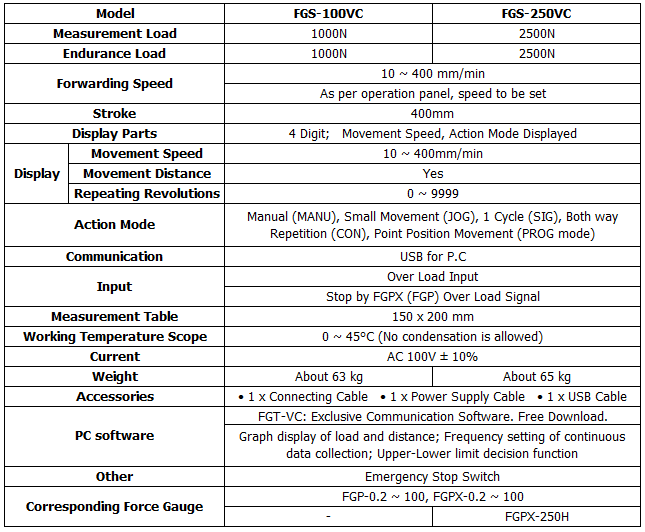

Measurement Load: 2N ~ 2500N (0.2kg ~ 250kg)

Stroke: Max up to 400mm

Measurement Table: 150 x 200mm

LED indication on display panel for easy observation

Exclusive Data Collection Software "FGT-VC"

Simultaneously collects the force gauge load data and stand movement distance



To serve your interest on Shimpo solutions, kindly contact our Sales Department
