DOT PEEN MACHINE EQUIPPED WITH AUTOMATIC Z-AXIS The c153 is a robust column mounted marking machine whose high speed, robust capabilities don't sacrifice a sliver of accuracy. Equipped with an automatic Z-axis, the c153 will mark on plastic or steel (up to 62HRC) components with ease. Its unique electromagnetic marking technology allows it to automatically adapt to various shapes and surface conditions, whether flat, concave, convex, circular, or raw material. The c153's extreme accuracy and consistency makes it ideal for datamatrix codes. Its autosensing function, LED lighting, and 160 x 100 mm marking window make it a reliable, precise marking…

Read more

Contact us for more information :

+62 21 62 63 851 / 52
marketing@yakinmaju.com

DOT PEEN MACHINE EQUIPPED WITH AUTOMATIC Z-AXIS

The c153 is a robust column mounted marking machine whose high speed, robust capabilities don't sacrifice a sliver of accuracy. Equipped with an automatic Z-axis, the c153 will mark on plastic or steel (up to 62HRC) components with ease. Its unique electromagnetic marking technology allows it to automatically adapt to various shapes and surface conditions, whether flat, concave, convex, circular, or raw material. The c153's extreme accuracy and consistency makes it ideal for datamatrix codes. Its autosensing function, LED lighting, and 160 x 100 mm marking window make it a reliable, precise marking system that only requires one source of energy.

  • High Speed Accuracy

  • Automatic Z-Axis

  • Consistency

  • Rugged and Reliable



To serve your interest on SIC Marking e10 c153 ZA Dot Peen benchtop Marking Machine, kindly contact our Sales Department

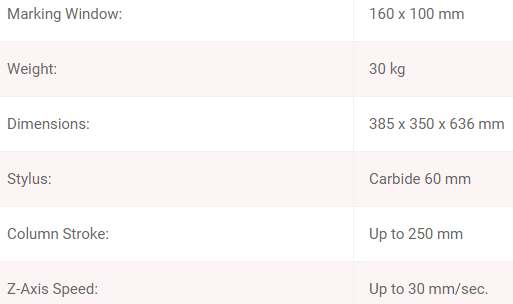

Mechanic Features

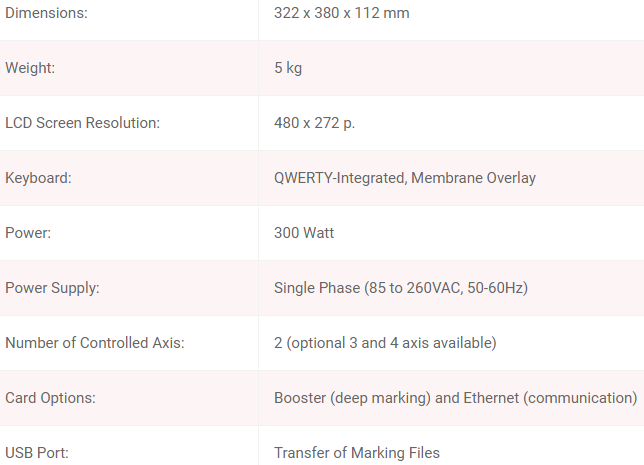

Electronics Features

The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.

Marking files can be up/downloaded from a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.

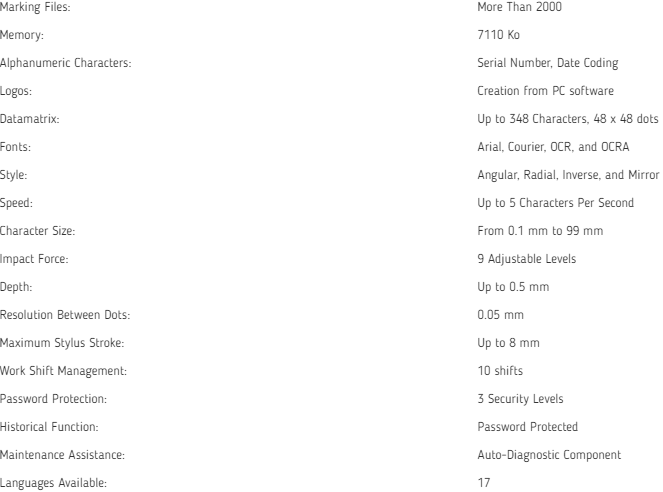

Steering Software

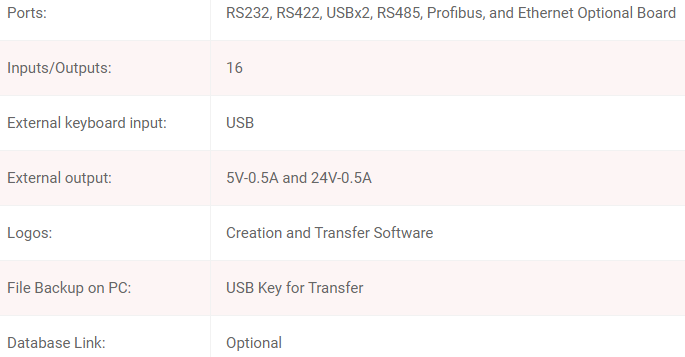

Communication







To serve your interest on SIC Marking e10 c153 ZA Dot Peen benchtop Marking Machine, kindly contact our Sales Department

Request A Quote

To receive further information on SIC Marking Dot Pen benchtop Marking Machine e10 c153 ZA, please complete the following form. We will reply as soon as possible
