Sylvac-Scan 25 & 50 are optimized to simplify the applications of a vertical profile projection measure of work-piece by using sensory component on the left side of the machine. Sylvac-Scan 25 & 50 work using the drop shadow principle; the device makes an optical scan of the component and reproduces a highly magnified, high-resolution image, on which it measures dimensions such as lengths, diameters, angles, radii, chamfers, threads, etc. There is also a component rotation system so that any form errors such as runout, cylindricity, etc. can be measured. With a click of a button, the secured workpiece then moved by the Sylvac-Scan 25 &…

Read more

Contact us for more information :

+62 21 62 63 851 / 52
marketing@yakinmaju.com

Sylvac-Scan 25 & 50 are optimized to simplify the applications of a vertical profile projection measure of work-piece by using sensory component on the left side of the machine. Sylvac-Scan 25 & 50 work using the drop shadow principle; the device makes an optical scan of the component and reproduces a highly magnified, high-resolution image, on which it measures dimensions such as lengths, diameters, angles, radii, chamfers, threads, etc. There is also a component rotation system so that any form errors such as runout, cylindricity, etc. can be measured. With a click of a button, the secured workpiece then moved by the Sylvac-Scan 25 & 50 through the optical path whilst scanning the profile.

The conveniently open design of Sylvac-Scan 25 & 50 makes it easily accessible by the operator. The integrated projector allows your operator to manually follow the evolution of the measurement process. Sylvac-Scan 25 & 50 are suitable for your small cylindrical parts with repetitive accuracy with higher software compatibility compared to older models. It offers the small part manufacturer the CNC alternative to traditional hand tools and optical projector methods of inspection and can be used directly in the production area. With rapid inspection and set-up times the system can be integrated within the overall manufacturing process and is suitable for one off sample and 100% inspection. The industrial software "Pro-Measure" further enhances the overall flexibility of Sylvac-Scan 25 & 50. This highly intuitive package easily satisfies each stage of the inspection process and the time from part program creation to CNC component measurement is only a matter of minutes.

Your investment on the Swiss made Sylvac-Scan 25 & 50 will unlocks the higher level of precision without demanding the additional cost on human resources. It will win you the competitive edge with instant accuracy of 0.5µm on diameter and 2µm on measuring length. Sylvac-Scan 25 & 50 is the standard on working with critical cylindrical components as in aerospace, electrical motors, drills and cutting tools, automotive shafts, medical device, connectors, dental screws and implants, hydraulics parts, rollers, turbines parts, CNC turned parts, etc. Various thread types and features can also be measured and analyzed with Sylvac-Scan 25 & 50.

Sylvac-Scan 25 & 50 features:

  • Intelligent automatic recognition of parts.
  • Convenient application, by simply put the work-piece on the Sylvac-Scan 25 & 50, press the button and let the Sylvac-Scan 25 & 50 scan all the values automatically without any pre-programing necessary.
  • By using Sylvac-Scan 25 & 50, fiddly set up, costly multi-gauge maintenance on conventional measuring systems including multi-gauging jig, roundness and bench center is no longer necessary.
  • Single inspection report, which is difficult to imagine when several different instruments or items of equipment are usually required to check all the parameters.
  • Rotary headstock for turning the work-piece automatically.
  • On request, an automatic feed robot can be linked to the machine to create an automatic inspection unit that does not require an operator.
  • Sylvac-Scan 25 & 50 are delivered with highly reputable aftersales service.
If you have any kind of questions or any interests for our product, feel free to contact us here

Sylvac-Scan 25 & 50

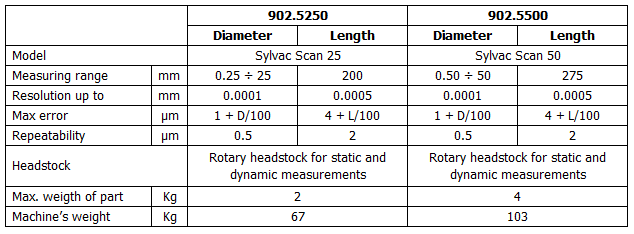

 Sylvac-Scan 25 & 50 Ordering Guide:
