SYLVAC Digital Bore Gauge X_Treme 3 BT - XT3D

Sylvac Xtreme 3 BT - XT3D is devised for your convenient application in the process of accurately measuring holes which conform to DIN863. It is also engineered with constant-force digital readout to ensures that the measuring pressure remains constant throughout the measurement whilst radiussed measuring anvils provide optimum centralisation in the part with maximum error of 4 µm. Its Bluetooth data connectivity, allows you to analyse the data in spreadsheet via smartphones and PC. Sylvac's genuine solution will help your company minimize human error in recording and provide you a realtime and traceable measurement whenever asked by customer with the most demanding specification.

Depends on your application, Sylvac Xtreme 3 BT - XT3D inherently provide investment value with inspection practicality. The 3-point pivotal anvils is designed with tungsten carbide from 12.5 mm and interchangeable heads for both versatility and improvised application. Thanks to its IP67 certified electronics, your operator can work freely in harsh environment against water, humidity, sea water moist and direct exposure of oil and coolant. This bore gage is highly regarded by many operator in doing routines as in piping valve or boiler system maintenance, cannon barrel and firing turret, marine combustion chamber, suction nozzle, gas tube, pneumatics, hydraulics, coated chamber, and many more.

Sylvac Digital Bore Gauge Xtreme 3 BT - XT3D features:

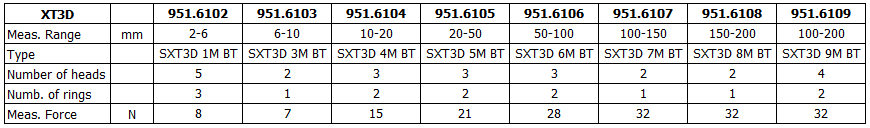

• Great measuring range (2 - 300 mm)
• Blind bore measurement from 2 to 6 mm and from 12.5 mm
• Fixed anvils
• UKAS certificate included with all rings
• UKAS certificate included with each instrument
• Manufactured according to DIN863
• Memorization of 4 ring gauges values
• Water and coolant resistant, protection rating IP67 according to IEC 60529
• Programmable by PC
• S_Connect Proximity
