SYLVAC Digital Caliper S_Cal EVO Smart Point Jaws

Sylvac S_Cal EVO Smart Points Jaws is caliper devised to provide you a direct reading of the distance measured with high precision adheres to DIN 862. These calipers comprise a calibrated scale with a fixed jaw designed with rounded detachable anvils, and a pointer jaw, that slides along the lightweight vernier scale. Thanks to its 1,7 inch LCD screen along with 2 modes button, you can easily interpolate the jaw to improve the precision of the reading with constant force.  The IP67 certified electronics is built to withstand direct contact of water, humidity, coolant and oil while its vernier body made of stainless steel frame with smooth grey enamel finish for protection against corrosion and scratch.

By investing on Sylvac S_Cal EVO Smart Points Jaws, you can have highly repetitive value on measuring internal dimensions, grooves, jagged workpiece such as spline gears, external dimensions by its lower jaws, and in many cases depth by the use of a the depth probe that is attached to the movable head and slides along the centre of the body. Sylvac Digital Caliper's depth probe is slender  yet sturdyand can get into deep grooves, turbocharger valve and jagged workpiece that is difficult on comparable brands which use a thin-elastic probe to facilitate your operator when working in busy queue.

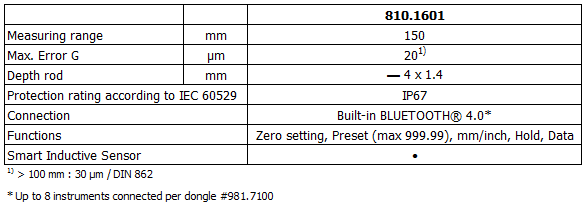

Sylvac S_Cal EVO Smart Points Jaws features:

• Integrated Bluetooth® Smart data transmission
• Interchangeable round polished anvils for measuring internal grooves
• Programmable button according to your needs
• Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 according to IEC 60529
• Automatic wake-up by moving the electronic on his frame. (Absolute System S.I.S)
• Sleeping mode after 10 min. of no use. (Absolute System S.I.S)
• Position memorized in sleeping mode, Absolute System S.I.S*
• Maximum speed of displacement : 2.5 m/sec
• Mechanical frame in stainless steel, hardened and grinded
• Great comfort of use thanks to its ergonomic frame
