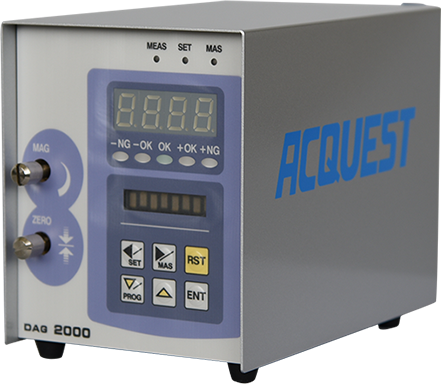

ACQUEST - DIGITAL AIR MICROMETER DAG 2000

Easy application to automatic machines 1ch bar display function

The main display has a three-color indicator lamp, and can display a five-rank judgment. The standard serial communication function allows data (measurement values ​​and judgment results) to be output to a PC or printer.

FEATURES:

• Minimum display resolution 0.01μm (optional).
• Judgment can be identified by the display color.
  ・Main display: 3-color (green, orange, red) digital display.
  ・Judgment lamp: 5-rank judgment indicator lamp: OK (green), -OK, +OK (orange), -NG, +NG (red).
• Master alignment is performed automatically by push button or external signal (optional).
• It has a built-in multi-range A/E converter and can handle all ranges with just the panel switch.
• The compact design makes it ideal for incorporating into equipment.
