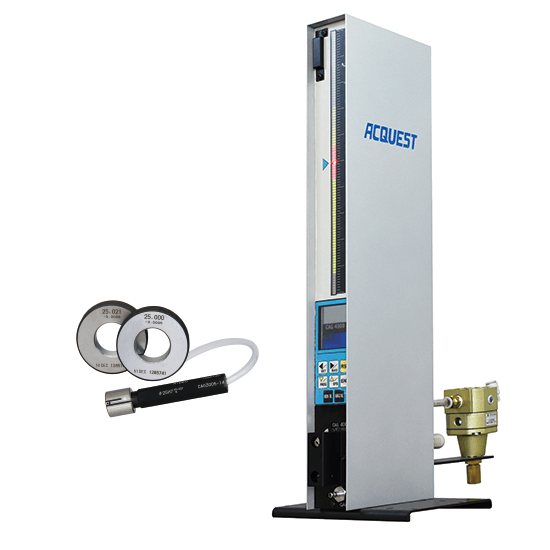

ACQUEST AIR MICROMETER CAG - 4000 Features:
- Built-in SD card slot
- Saving data as standalone is possible
- Tracebility control
- Data format is CSV for Excel edit
- Color LCD: TFT color LCD for easy-to-read and possible quick judgement
- Increased number of program: number of stored program is increased from 10 to 30
- Additional master button: master coordination can be easily performed by push button
- USB port is standard equiped: connect PC and CAG-4000 directly by USB cable, and download the measuring data to Excel
- Compact design: 40mm shorter in depth
- Support IOT
Applicable to U-WAVE:
You can download the CAG's measured data to PC with other measuring device data at the same time by using U-WAVE, which is MITUTOYO's wireless data communication system.
.JPG) |
The measured data will be sent to PC where U-WAVE-R is connected (wireless communication) |
 |
Confirm the transmitting and receivingon each other with U-WAVE-R. So the measured data will be safe for sending to PC from further afield. |
 |
It's available to transfer the data to PC by 20m distance from display. |
Easy-to-read bar graph display:
 |
The 101 dot, 3-color bar graph display judgment indicates green for OK, red for NG. |
Display Screen:
 |
Three language operation : English, japanese, or Chinese. Judgement results are displayed. OK is green color, NG is red color.
Master coordination can be easily performed by push button. |
