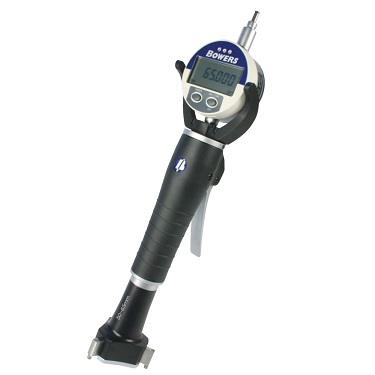

BOWERS XTL LEVER

The robust new Bowers XTL Lever range is perfect for vertical bore measurement, providing accurate and repeatable bore gauging under inspection department or shop-fl oor conditions. The XTL has a simple ergonomic action and can be fi tted with a wide variety of analogue and digital indicators or even transducer probes. The range can be provided with IP65 rated digital indicators, rendering it resistant to coolant, water and airborne particles. A ‘wireless’ gauge module is also available, enabling cable free communication with remote data collectors, PCs etc. The cost-effective new XTL boasts hardwearing extended travel carbide measuring anvils and is able to measure diameters up to 300mm.

● Measuring range 6-100mm (diameters above 100 on request)
● Excellent for vertical bore measurement
● Simple 2-button operation
● 3 preset memories
● RS-232 output
● Self-centering heads
● Constant measuring pressure
● Fast, accurate measurement
● Resolution 0.001mm (0.00005”)
● Tungsten carbide measuring faces on all 3-point heads from 12.5mm
● Blind bore measurement above 12.5mm (0.500”)
● Extensions available for deep hole measurement
● Setting rings included with individual instruments and sets
● UKAS certifi cates supplied as standard with all setting rings
● UKAS certifi cates supplied with all gauges
● Serial number on all gauges and measuring heads
● Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
● Bore gauges manufactured according to DIN 863, part 4

• Support IOT
