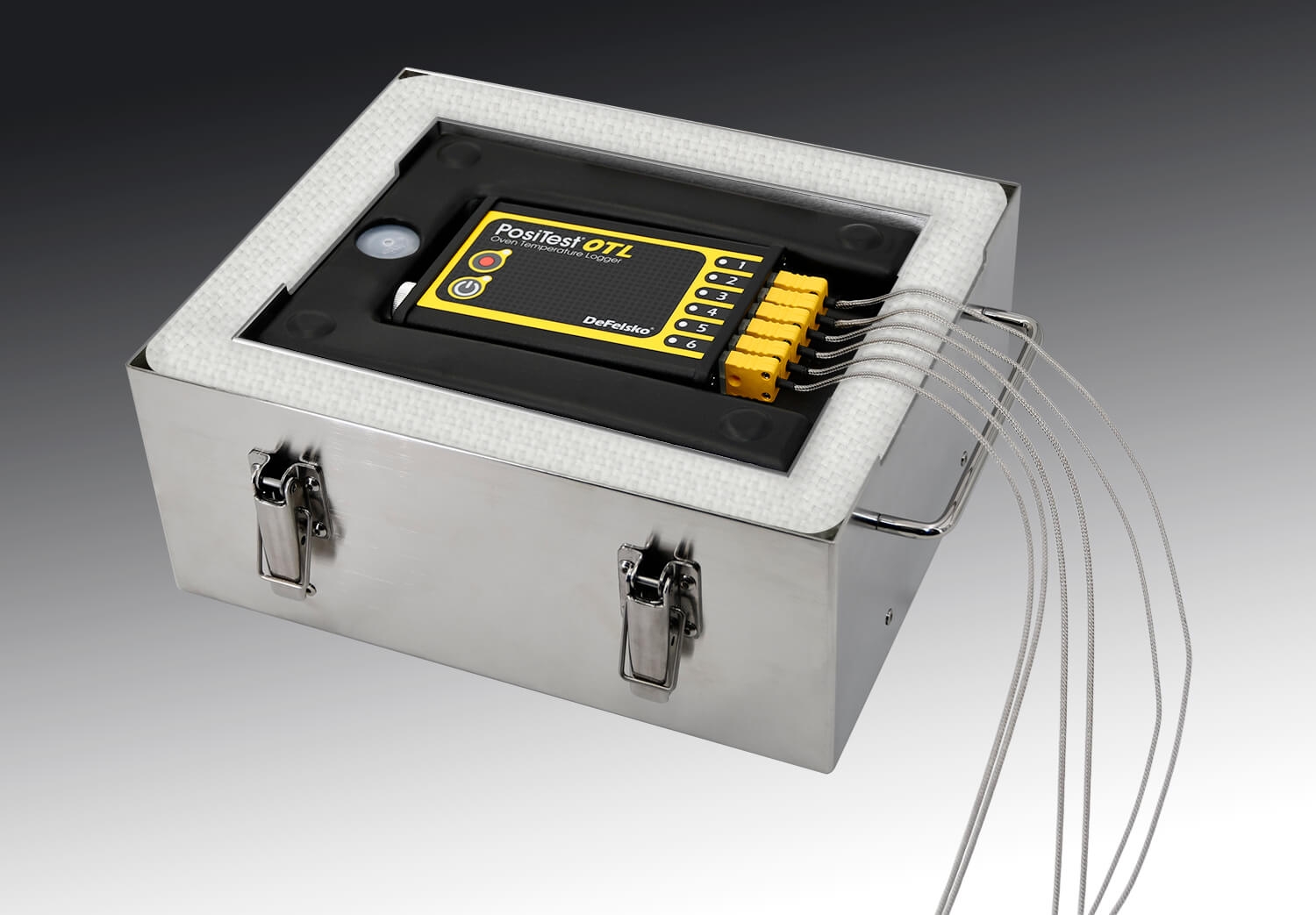

PosiTest OTL Oven Temperature Logger

Measures and records oven temperature profiles

• Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
• High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
• 6 K-type thermocouple ports (channels)
• NEW Cure Index compares supplier's cure specifications to actual oven and part temperatures to ensure a proper cure
• Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
• Wide variety of probes available with 1.8, 3.6, or 6 m (6', 12', or 20') stainless steel braided cables (sold separately)

FEATURES

• Simple, easy-to-use interface
• 6 K-type thermocouple ports (channels)
• Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
• Records measurements every 2 seconds for up to 22 hours of recording time
• Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
• NEW Cure Index compares supplier's cure specifications to actual oven and part temperatures to ensure a proper cure
• Bright LEDs indicate logger status at a glance
• High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
• Certificate of calibration showing traceability to NIST included

KITS

LOGGER KITS

LOGGER KITS COME with temperature logger, stainless steel high temperature barrier box, choice of holder, 6 engraved probe ID tags, two AAA batteries, instructions, Long Form Certificate of Calibration traceable to NIST, carrying case, USB cable, PosiSoft Desktop software, and two year warranty.

LOGGER ONLY

PosiTest OTL without Holder or Barrier Box (0 to 70° C , 32 to 158° F)

TEMPERATURE PROBES

• Wide variety of surface and air temperature probes available with 1.8, 3.6, or 6 m (6', 12', or 20') stainless steel braided cable (not included). See the Temperature Probes page for details.
• Certificate of Calibration showing traceability to NIST included

POSISOFT DEKSTOP

FREE powerful desktop software (PC/Mac) for downloading, viewing, printing, and storing measurement data.

Add supplier cure schedule specifications, batch annotations, label individual channels, set threshold temperatures, and compare datasets to reference batches.

Includes a customizable, templated PDF Report Generator. No internet connection required.

Assign names to each channel and view Cure Index, Time above Temperature, and other statistics

Customizable PDF Report Generator—add custom cover pages and logos, and choose to display images, charts, histograms, and/or readings
