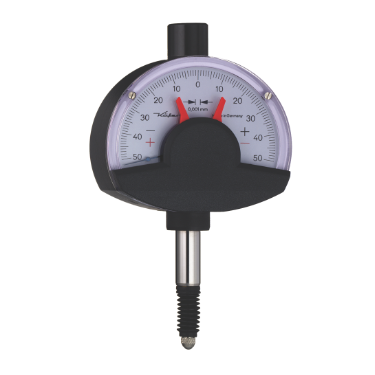

The Käfer Comparator Gauges Compika offer a high degree of security and precision. They are based on a solid and well thought-out construction taking into account the latest technology. Furthermore, they are manufactured by the most up-to-date methods. Furnished with a fine adjustment of the pointer and a cable release, these gauges are on your side for all comparison measuring up to a graduation of one micron (0,001mm).

Käfer Compika Comparator Gauges features:

• Compika Comparator Gauges are designed to suit the requirements of DIN 879-1. This applies not only to the dimensions but also to permitted spans of error, hysteresis and measuring pressure.
• Effective shockproof system with pinions and shafts of the movement are jewelled
• After removal of the safety cap the adjustment screw on top of the case allows simple and safe zero setting of the instrument over the total measuring range.
• A safety cap prevents unintentional turning of the fine adjustment facility.
• Stem and spindle are made of hardened stainless steel made the measuring spindles are very sensitive on account of their accurate guides.
• Additional overtravel assists with the insertion of workpieces into the measuring device.
• The clear scale is shadow free with the red tolerance markers are easy to recognize and to set.
• On request all our models are available with a reduced pressure of 0.5 N.

To serve your interest on various Käfer products, kindly contact our Sales Department
