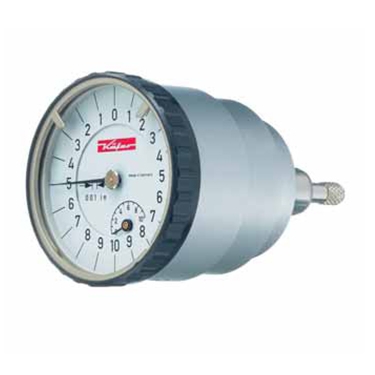

Kafer Precision Dial Gauges With Back Plunger are light and handy. The models with back plunger provide the designer with new construction possibilities. They allow positioning with optimal read-out facility. These models can be held either on the stem Ø 3/8” or on the 1.1024“ diameter spigot. Spindle and stem are made of resistant stainless steel. The spindle is lapped for accuracy.

Solidly made, it has a wide application for measuring accurately within its measuring range of 0.2 inch. The well thought-out design, accurate components and robust construction of Kafer Precision Dial Gauge series offer reliability, durability and repetitive consistency.

Kafer Precision Dial Gauges With Back Plunger features:

• Dimensions and accuracy according to DIN EN ISO 463
• Range per revolution 0.02 inch
• Initial measuring force 1.5 N
• Dial reading 0-10-0
• Bezel-Ø 1 9/16”
• Stem-Ø 3/8”
• Accuracy according to manufacturing standard 0.0500.9.0007
• The final quality control for the whole series includes visual inspection and full mechanical functional tests.
• Supplied with Declaration of Conformity and Confirmation of Traceability.

To serve your interest on various Käfer products, kindly contact our Sales Department
