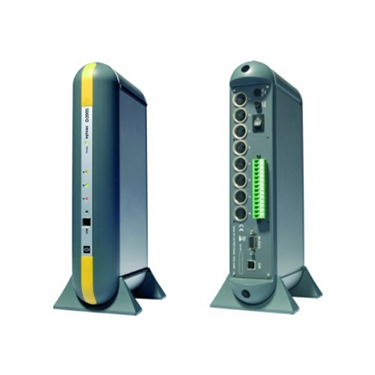

Sylvac D200S is devised to simplify and streamlining the sequence of probes and multi-inspection for cost saving application. The Sylvac D200S module is used to read and convert the value of the position of the two Sylvac probes. Numerous other integrated functions can be used to solve most measuring problems encountered.

Sylvac D200S offers the reasonable investment for both upgrades and installation of probes with improvised arrangement. With up to 8 probe inputs, this compact multiple-input gauging system feed the results synchronously and  independently by each probe through a USB port and on an RS232 port. The interconnectivity allow you to works better with the possibility of having a larger multiplexers which can be constructed simply by chaining them together.

Sylvac D200S Multiplexer Unit features:

• Multiplexer with 8 inputs (for Sylvac probes P2 to P25)
• Dynamic measurement (200 meas/s)
• Ideal for the layout conception of multi-gauging
• Command for pneumatic lifting unit
• Software allowing the treatment of up to 24 channels simultaneously (bargraph)
• Sending of the measured values into Excel, notepad or in specific files
• Creation of sequences for sending data
• Mathematic combinations between channels
• Standalone use possible
• Support IOT

To serve your interest on various Sylvac solutions, kindly contact our Sales Department
