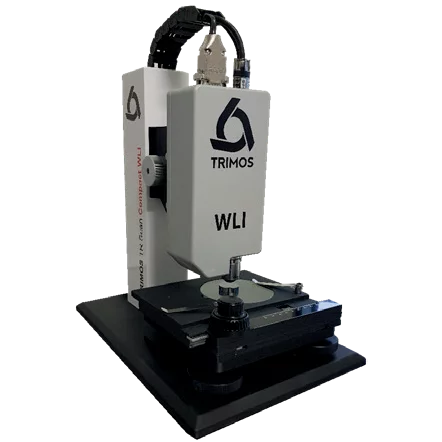

TRIMOS TR SCAN COMPACT WLI

High precision non-contact surface measurement

The TR Scan Compact WLI range allows measurements on any type of material with sub-nanometric resolution.
With its simplicity of use and small size it integrates easily in a lab environment and permit to realize quick and simple measurements.

WLI (While Light Interferometry) technology combined with a piezo motor allows extremely fast measurements.
The table allows manual movement with workpieces weighing up to 5 kg.
Motorized tables are available as an option to extend the X&Y measuring range.

Non-contact
Small footprint
Measuring range 400 µm
Resolution 0.1 nanometer
Extremely easy to use
2.5x and 5x Michelson type optics for a wide field of view
Exchangeable optics, or mounted on a carousel
Support IOT
