With longtime experience in manufacturing high-precision cutting tools, Ilix offers a wide product range of high-quality, precise and effective products for different tasks; from dry machining with high performances twist drills (VHM) to thread production or reaming even in hundredth increment sizes. Ilix provides highest precision for today’s most demanding applications.
Ilix 6610 is one of Ilix’s machine taps with NPT thread dimensions generally as per DIN 371. Ilix 6610 taps are made of the finest HSS cobalt which produces higher toughness and hardness. It can perform blind as well as through hole borings. Ilix 6610 taps are applicable for steel, cast iron, and non-ferrous material such as Al-Si alloys.
To serve your interest on Ilix products, kindly contact our Sales Department
NPT thread (National Pipe Taper USA, standard range)
tapered pipe thread 1 : 16 – included angle 60°

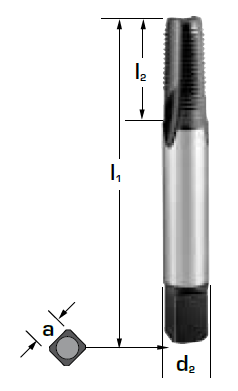

Size of pipe in inch | tpi | Tap drill | l1 | l2 | d2 h9 | a h12 | 6610 |
NPT 1/16 | 27 | 6.3 | 56 | 14 | 7 | 5.5 | • |
NPT 1/8 | 27 | 8.5 | 63 | 15 | 8 | 6.2 | • |
NPT 1/4 | 18 | 11.1 | 70 | 21 | 11 | 9 | • |
NPT 3/8 | 18 | 14.5 | 70 | 21 | 12 | 9 | • |
NPT 1/2 | 14 | 17.75 | 80 | 27 | 16 | 12 | • |
NPT 3/4 | 14 | 23 | 100 | 27 | 20 | 16 | • |
NPT 1 | 11.5 | 29 | 125 | 32 | 25 | 20 | • |
NPT 1 1/4 | 11.5 | 38 | 125 | 33 | 32 | 24 | • |
NPT 1 1/2 | 11.5 | 44 | 140 | 33 | 36 | 29 | • |
NPT 2 | 11.5 | 56 | 140 | 44 | 36 | 29 | • |
