ILIX 6648 - MACHINE TAP VA DIN 352

ILIX 6648 - MACHINE TAP VA DIN 352 thumbnail

With longtime experience in manufacturing high-precision cutting tools, Ilix offers a wide product range of high-quality, precise and effective products for different tasks; from dry machining with high performances twist drills (VHM) to thread production or reaming even in hundredth increment sizes. Ilix provides highest precision for today’s most demanding applications. Ilix 6648 is one of Ilix’s short machine taps for ISO metric coarse thread as per DIN 13. Ilix 6648 taps are made of the finest HSS cobalt which produces higher toughness and hardness. It can perform blind hole borings very well. Ilix 6648 taps are applicable for various…

Read more

Contact us for more information :

+62 21 62 63 851 / 52
marketing@yakinmaju.com

With longtime experience in manufacturing high-precision cutting tools, Ilix offers a wide product range of high-quality, precise and effective products for different tasks; from dry machining with high performances twist drills (VHM) to thread production or reaming even in hundredth increment sizes. Ilix provides highest precision for today’s most demanding applications.

Ilix 6648 is one of Ilix’s short machine taps for ISO metric coarse thread as per DIN 13. Ilix 6648 taps are made of the finest HSS cobalt which produces higher toughness and hardness. It can perform blind hole borings very well. Ilix 6648 taps are applicable for various materials, such as stainless steel, acid and heat resistant steels and other material difficult to machine (up to 1300N/mm2tensile strength).



To serve your interest on Ilix products, kindly contact our Sales Department

Short machine taps

for ISO metric coarse thread as per DIN 13

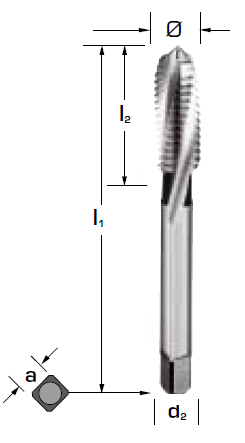

Ø mm Pitch Tap drill l1 l2 l3 d2 h9 a h12 6648
M 3 0.5 2.5 40 11 5 3.5 2.7 •
M 3.5 0.6 2.9 45 13 6 4 3 •
M 4 0.7 3.3 45 13 7 4.5 3.4 •
M 5 0.8 4.2 50 16 8 6 4.9 •
M 6 1 5 50 19 10 6 4.9 •
M 8 1.25 6.8 56 22 12 6 4.9 •
M 10 1.5 8.5 70 24 14 7 5.5 •
M 12 1.75 10.2 75 29 16 9 7 •
M 14 2 12 80 30 20 11 9 •
M 16 2 14 80 32 20 12 9 •
