With longtime experience in manufacturing high-precision cutting tools, Ilix offers a wide product range of high-quality, precise and effective products for different tasks; from dry machining with high performances twist drills (VHM) to thread production or reaming even in hundredth increment sizes. Ilix provides highest precision for today’s most demanding applications.
Ilix 6631 is one of Ilix’s machine taps with reinforced shank for ISO metric coarse thread as per DIN 13. Ilix 6631 taps are made of the finest HSS cobalt which produces higher toughness and hardness. In addition, it is available with TiAIN Futura coating and uncoated model for affordable alternative in cutting material. It can perform blind as well as through hole borings. Ilix 6631 taps are applicable for cast iron and non-ferrous materials, such as grey cast iron, spheroidal cast iron and thermoplastics with organic or inorganic fillers.
To serve your interest on Ilix products, kindly contact our Sales Department

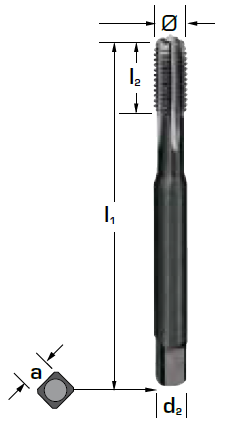

Machine taps with reinforced shank for ISO metric coarse thread as per DIN 13
| Ø mm |
Pitch |
Tap drill |
l1 |
l2 |
l3 |
d2 h9 |
a h12 |
6631 |
| M 3 |
0.5 |
2.5 |
56 |
11 |
5 |
3.5 |
2.7 |
• |
| M 3.5 |
0.6 |
2.9 |
56 |
13 |
6 |
4 |
3 |
• |
| M 4 |
0.7 |
3.3 |
63 |
13 |
7 |
4.5 |
3.4 |
• |
| M 5 |
0.8 |
4.2 |
70 |
16 |
8 |
6 |
4.9 |
• |
| M 6 |
1 |
5 |
80 |
19 |
10 |
6 |
4.9 |
• |
| M 7 |
1 |
6 |
80 |
19 |
10 |
7 |
5.5 |
• |
| M 8 |
1.25 |
6.8 |
90 |
22 |
12 |
8 |
6.2 |
• |
| M 10 |
1.5 |
8.5 |
100 |
24 |
14 |
10 |
8 |
• |
