With longtime experience in manufacturing high-precision cutting tools, Ilix offers a wide product range of high-quality, precise and effective products for different tasks; from dry machining with high performances twist drills (VHM) to thread production or reaming even in hundredth increment sizes. Ilix provides highest precision for today’s most demanding applications. Ilix 6615 is one of Ilix’s hand taps, in set of 3 pieces, for ISO metric coarse thread as per DIN 13. Ilix 6615 taps are made of the finest HSS which produces higher toughness and hardness. It can perform blind as well as through hole borings. Ilix 6615…
With longtime experience in manufacturing high-precision cutting tools, Ilix offers a wide product range of high-quality, precise and effective products for different tasks; from dry machining with high performances twist drills (VHM) to thread production or reaming even in hundredth increment sizes. Ilix provides highest precision for today’s most demanding applications.
Ilix 6615 is one of Ilix’s hand taps, in set of 3 pieces, for ISO metric coarse thread as per DIN 13. Ilix 6615 taps are made of the finest HSS which produces higher toughness and hardness. It can perform blind as well as through hole borings. Ilix 6615 taps are applicable for various materials, such as steel (up to 1100 N/mm2tensile strength), cast steel, malleable iron, and grey cast iron.
To serve your interest on Ilix products, kindly contact our Sales Department

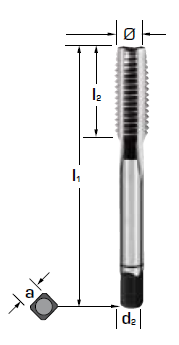

Hand taps, serial in set of 3 pieces
for ISO metric coarse thread as per DIN 13
Ø |
Pitch |
Tap drill |
l1 |
l2 |
d2 h9** |
a h12 |
6615 |
M1 |
0,25 |
0,75 |
32 |
5,5 |
2,5 |
2,1 |
• |
M1,1 |
0,25 |
0,85 |
32 |
5,5 |
2,5 |
2,1 |
• |
M1,2 |
0,25 |
0,95 |
32 |
5,5 |
2,5 |
2,1 |
• |
M1,4 |
0,3 |
1,1 |
32 |
7 |
2,5 |
2,1 |
• |
M1,6 |
0,35 |
1,25 |
32 |
2,5 |
2,1 |
• |
|
M1,7* |
0,35 |
1,3 |
32 |
8 |
2,5 |
2,1 |
• |
M1,8 |
0,35 |
1,45 |
32 |
8 |
2,5 |
2,1 |
• |
M2 |
0,4 |
1,6 |
36 |
8 |
2,8 |
2,1 |
• |
M2,2 |
0,45 |
1,75 |
36 |
9 |
2,8 |
2,1 |
• |
M2,3* |
0,4 |
1,9 |
36 |
9 |
2,8 |
2,1 |
• |
M2,5 |
0,45 |
2,05 |
40 |
9 |
2,8 |
2,1 |
• |
M2,6* |
0,45 |
2,1 |
40 |
9 |
2,8 |
2,1 |
• |
M3 |
0,5 |
2,5 |
40 |
11 |
3,5 |
2,7 |
• |
3* |
0,6 |
2,4 |
40 |
11 |
3,5 |
2,7 |
• |
M3,5 |
0,6 |
2,9 |
45 |
13 |
4 |
3 |
• |
M4 |
0,7 |
3,3 |
45 |
13 |
4,5 |
3,4 |
• |
4* |
0,75 |
3,25 |
45 |
13 |
4,5 |
3,4 |
• |
M4,5 |
0,75 |
3,7 |
50 |
16 |
6 |
4,9 |
• |
M5 |
0,8 |
4,2 |
50 |
16 |
6 |
4,9 |
• |
5* |
0,9 |
4,1 |
50 |
16 |
6 |
4,9 |
• |
M6 |
1 |
5 |
50 |
19 |
6 |
4,9 |
• |
M7 |
1 |
6 |
50 |
19 |
6 |
4,9 |
• |
M8 |
1,25 |
6,8 |
56 |
22 |
6 |
4,9 |
• |
M9 |
1,25 |
7,8 |
63 |
22 |
7 |
5,5 |
• |
M10 |
1,5 |
8,5 |
70 |
24 |
7 |
6,2 |
• |
M11 |
1,5 |
9,5 |
70 |
24 |
8 |
5,5 |
• |
M12 |
1,75 |
10,2 |
75 |
29 |
9 |
7 |
• |
M14 |
2 |
12 |
80 |
30 |
11 |
9 |
• |
M16 |
2 |
14 |
80 |
32 |
12 |
9 |
• |
M18 |
2,5 |
15,5 |
95 |
40 |
14 |
11 |
• |
M20 |
2,5 |
17,5 |
95 |
40 |
16 |
12 |
• |
M22 |
2,5 |
19,5 |
100 |
40 |
16 |
14,5 |
• |
M24 |
3 |
21 |
110 |
50 |
18 |
14,5 |
• |
M27 |
3 |
24 |
110 |
50 |
20 |
16 |
• |
M30 |
3,5 |
26,5 |
125 |
56 |
22 |
18 |
• |
M33 |
3,5 |
29,5 |
125 |
56 |
25 |
20 |
• |
M36 |
4 |
32 |
150 |
63 |
28 |
22 |
• |
M39 |
4 |
35 |
150 |
63 |
32 |
24 |
• |
M42 |
4,5 |
37,5 |
150 |
63 |
32 |
24 |
• |
M45 |
4,5 |
40,5 |
160 |
70 |
36 |
29 |
• |
M48 |
5 |
43 |
180 |
75 |
36 |
29 |
• |
M52 |
5 |
47 |
180 |
75 |
40 |
32 |
• |
M56 |
5,5 |
50,5 |
200 |
85 |
45 |
35 |
• |
M60 |
5,5 |
54,5 |
200 |
85 |
45 |
35 |
• |
M64 |
6 |
58 |
220 |
90 |
50 |
39 |
• |
M68 |
6 |
62 |
220 |
90 |
50 |
29 |
• |
* These sizes are not ISO standard.
** Shank tolerance of 1st and 2nd tap h 12
To receive further information on ILIX 6615 - HAND TAP N DIN 352, please complete the following form. We will reply as soon as possible
