Maykestag End Mills "Speedcut" – Ultra Hard Steel are made of the best fine grain carbide which produces higher hardness, heat endurance and bending strength. Maykestag manufactures Maykestag End Mills "Speedcut" – Ultra Hard Steel with the most up-to-date coating technology for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machine and higher tool stability (even in unstable working conditions).
Maykestag End Mills "Speedcut" – Ultra Hard Steel are highly recommended for machining hardened and high tensile steels. It offers high level of stiffness which enables good feed rates and long service lives. Maykestag End Mills "Speedcut" – Ultra Hard Steel also have the spiral angle which creates a very good surface quality on the work piece. It is suitable for cast iron with tensile strength of 1100 N/mm2up to 1300 N/mm2, and the one with 68 HRC.
To serve your interest on Maykestag products, kindly contact our Sales Department
|
d1e8
mm
|
d2h5
mm
|
l1
mm
|
l2
mm
|
45⁰ |
Z |
| 4 |
6 |
57 |
11 |
0.05 |
6 |
| 5 |
6 |
57 |
13 |
0.05 |
6 |
| 6 |
6 |
57 |
13 |
0.05 |
6 |
| 8 |
8 |
63 |
19 |
0.05 |
6 |
| 10 |
10 |
72 |
22 |
0.05 |
6 |
| 12 |
12 |
83 |
26 |
0.05 |
6 |
| 14 |
14 |
83 |
26 |
0.10 |
6 |
| 16 |
16 |
92 |
32 |
0.10 |
8 |
| 20 |
20 |
104 |
38 |
0.10 |
10 |
|

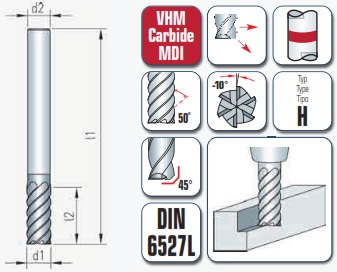

MAYKESTAG END MILLS "SPEEDCUT" - ULTRA HARD STEEL
-DIN 6535-HA (Shank)
-ALUNIT-S® (Special coating for highest cutting performance)
-ISO Certification: ALPEN-MAYKESTAG has been certified to EN ISO 9001 on all sites since 2000.
|
