MAYKESTAG END MILLS - SHORT SERIES, TWO FLUTES

MAYKESTAG END MILLS - SHORT SERIES, TWO FLUTES thumbnail

Maykestag End Mills – Short Series, Two Flutes are made of the best fine grain carbide which produces higher hardness, heat endurance and bending strength. Maykestag manufactures Maykestag End Mills – Short Series, Two Flutes with the most up-to-date coating technology for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions). Maykestag End Mills – Short Series, Two Flutes offer the best result for horizontal milling with exact tolerances. It is recommended for milling in stainless steel and cast iron materials. Maykestag End Mills – Short…

Read more

Contact us for more information :

+62 21 62 63 851 / 52
marketing@yakinmaju.com

Maykestag End Mills – Short Series, Two Flutes are made of the best fine grain carbide which produces higher hardness, heat endurance and bending strength. Maykestag manufactures Maykestag End Mills – Short Series, Two Flutes with the most up-to-date coating technology for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions).

Maykestag End Mills – Short Series, Two Flutes offer the best result for horizontal milling with exact tolerances. It is recommended for milling in stainless steel and cast iron materials. Maykestag End Mills – Short Series, Two Flutes are also available with ALUNIT coating and uncoated model for affordable alternative in cutting ferrous material.  It is suitable for milling in materials with medium and high tensile strength up to 1300 N/mm2.



To serve your interest on Maykestag products, kindly contact our Sales Department

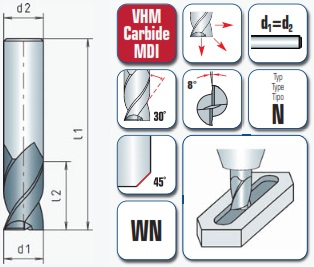

d1h10

mm

d2h6

mm

l1

mm

l2

mm

45 Z
1 1 38 5   2
1.5 1.5 38 5   2
2 2 38 8 0.04 2
2.5 2.5 38 8 0.05 2
3 3 38 12 0.05 2
3.5 3.5 40 12 0.05 2
4 4 40 12 0.06 2
4.5 4.5 50 14 0.06 2
5 5 50 14 0.06 2
6 6 50 16 0.08 2
7 7 60 20 0.10 2
8 8 63 20 0.10 2
9 9 67 20 0.12 2
10 10 72 22 0.15 2
12 12 73 22 0.15 2
14 14 75 25 0.20 2
16 16 82 28 0.20 2
18 18 84 28 0.20 2
20 20 104 35 0.25 2

MAYKESTAG END MILLS - SHORT SERIES, TWO FLUTES

Request A Quote

To receive further information on MAYKESTAG END MILLS - SHORT SERIES, TWO FLUTES, please complete the following form. We will reply as soon as possible


Sorry, this product does not have video.
