Maykestag Stub Drills are made of the best fine grain carbide which produces higher hardness, heat endurance and bending strength. Maykestag manufactures Maykestag Stub Drills with the most up-to-date coating technology for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions). Maykestag Stub Drills are recommended for drilling heat resistant steels, Cr-Ni steels, high carbon steel castings, grey cast iron, cast steels, manganese steels, bronze, aluminium with high percentage silicium and other difficult-to-machine materials. Beside high stability and universal usability, it offers optimum chip breakage, high centering…
Maykestag Stub Drills are made of the best fine grain carbide which produces higher hardness, heat endurance and bending strength. Maykestag manufactures Maykestag Stub Drills with the most up-to-date coating technology for your stability and wear resistance. The Maykestag's optimised tool geometry provides higher surface quality of the material to be machined and higher tool stability (even in unstable working conditions). Maykestag Stub Drills are recommended for drilling heat resistant steels, Cr-Ni steels, high carbon steel castings, grey cast iron, cast steels, manganese steels, bronze, aluminium with high percentage silicium and other difficult-to-machine materials. Beside high stability and universal usability, it offers optimum chip breakage, high centering accuracy and less cutting forces. Maykestag Stub Drills are suitable for materials with tensile strength up to 1300 N/mm2.
To serve your interest on Maykestag products, kindly contact our Sales Department
d1h7 mm |
d2h5 mm |
l1 mm |
l2 mm |
Z |
3 | 6 | 62 | 20 | 2 |
3.5 | 6 | 62 | 20 | 2 |
4 | 6 | 66 | 24 | 2 |
4.5 | 6 | 66 | 24 | 2 |
5 | 6 | 66 | 28 | 2 |
5.5 | 6 | 66 | 28 | 2 |
6 | 6 | 66 | 28 | 2 |
6.5 | 8 | 79 | 34 | 2 |
7 | 8 | 79 | 34 | 2 |
7.5 | 8 | 79 | 41 | 2 |
8 | 8 | 79 | 41 | 2 |
8,5 | 10 | 89 | 47 | 2 |
9 | 10 | 89 | 47 | 2 |
9.5 | 10 | 89 | 47 | 2 |
10 | 10 | 89 | 47 | 2 |
10.5 | 12 | 102 | 55 | 2 |
11 | 12 | 102 | 55 | 2 |
11.5 | 12 | 102 | 55 | 2 |
12 | 12 | 102 | 55 | 2 |
12.5 | 14 | 107 | 60 | 2 |
13 | 14 | 107 | 60 | 2 |

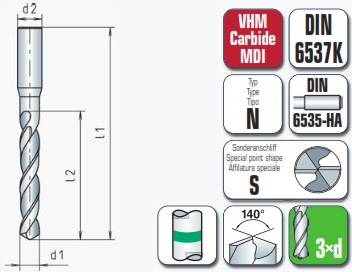

MAYKESTAG STUB DRILLS DIN 6537K
-DIN 6535-HA (Shank) *Also available with Weldon-shank (DIN 6535-HB) without extra charge. -ALUNIT-S® (Special coating for highest cutting performance) -ISO Certification: ALPEN-MAYKESTAG has been certified to EN ISO 9001 on all sites since 2000. |
