SIC Marking Dot Peen Marking Head e10 R i53

The i53 dot peen marking head was engineered for seamless integration into automatic production lines. Its compact, lightweight design requires minimal maintenance and consumables, and no separate pneumatic system. Easy to use, this integrated marking system can mark components of various shapes and surface materials, and will mark any material including plastics and hardened steel (up to 62HRC). Its electromagnetic driving technology allows permanent marking on parts of various shapes and surface finishes, whether flat, concave, convex, circular, raw, or machined.

The machine's internal components are protected by a heavy duty steel case, while flexible bellows allow continuous industrial use. The quality and accuracy of the guidance, the wide tolerance between the stylus and the part, and the speed and power of the integrated software make the i53 a high-performance tool that is super easy to operate, even with minimal training.

Superior Performance
Robust and reliable
Compact and easily integrated
Low cost of ownership

To serve your interest on SIC Marking e10 R i53 Dot Peen Marking Head, kindly contact our Sales Department

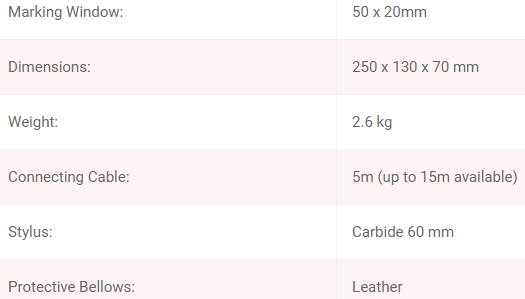

Mechanic Features

Electronic Features

Optimized for flawless integration on automated product lines, the e10 R controller has a sealed membrane keyboard and 480 x 272 pixels backlit LCD color screen, providing the operator with a direct and easy-to-use interface. It is equipped with an innovative microprocessor that offers immediate start up and smooth browsing, and its comprehensive software suite allows for linear, angular, radial, and mirror image marking. An optional 3rd/4th axis circuit board can be installed to control a motorized column and/or rotary axis. Self-diagnostic and machine history functions are also included.

The e10 R can be mounted vertically in an electrical cabinet with a DIN rail mounting kit (optional). A fully enclosed steel exterior protects the internal components, allowing use in even the most critical industrial environments.
