The p63 is a portable, handheld dot peen marker designed for use with the e10 controller. Its lightweight portability makes it ideal for marking large, difficult-to-access parts, and its arched front plate allows for sturdy marking on both flat and cylindrical surfaces. Capable of marking plastics and metals (up to 62HRC), the rugged cast aluminum body, ABS cover, and stainless steel front plate make the p63 a mobile, lightweight, and reliable tool. The marking pin is solenoid actuated and requires minimal maintenance and no air supply system.
To serve your interest on SIC Marking e10 p63 Portable Marking System, kindly contact our Sales Department

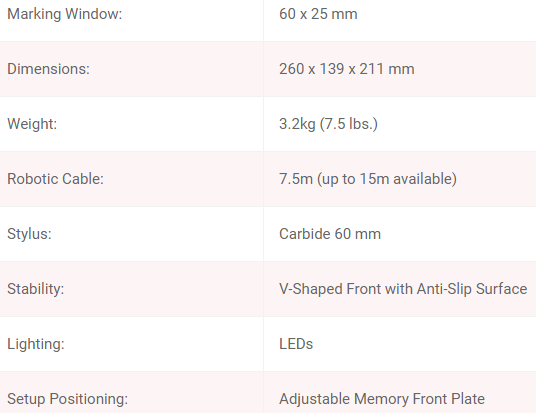

Mechanic Features

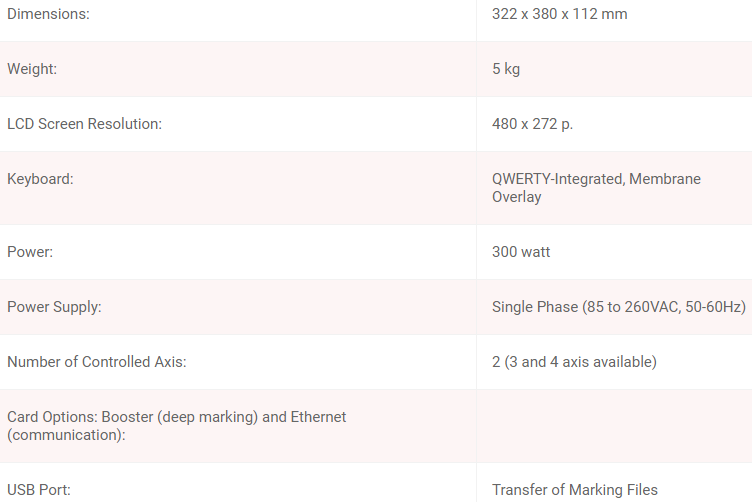

Electronic Features
The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.
Marking files can be up/downloaded from a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.
Steering Software

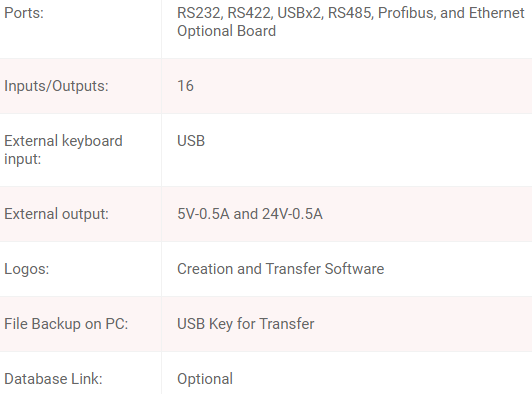

Communications
To serve your interest on SIC Marking e10 p63 Portable Marking System, kindly contact our Sales Department
