SIC Marking Dot Pen Marking Machine e10 c153

HIGH POWERED TABLE TOP MARKING

The extreme accuracy and speed of the c153 benchtop marking machines are unmatched. Using a unique electromagnetic marking technology, the c153 column mounted system can adapt to various shapes and surface conditions, whether flat, concave, convex, circular, or raw.

Only requiring one source of energy, it features an integrated counter, a 160 x 100 mm marking window, and LED lighting, making it a reliable, consistently accurate, and highly adaptable marking machine.

Cost Effective
Robust & Reliable
Comfortable to Operate
Speed and Accuracy

To serve your interest on SIC Marking e10 c153 Dot Peen Marking Machine, kindly contact our Sales Department

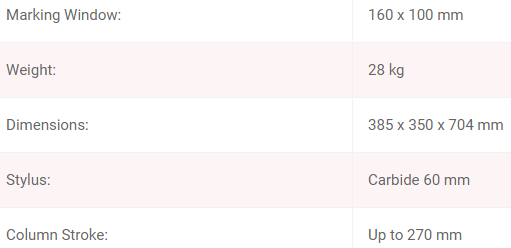

Mechanic Features

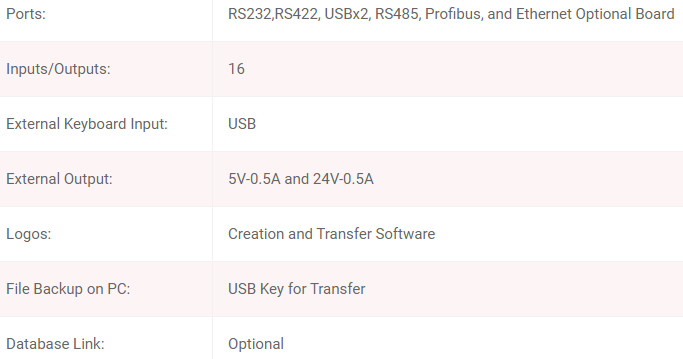

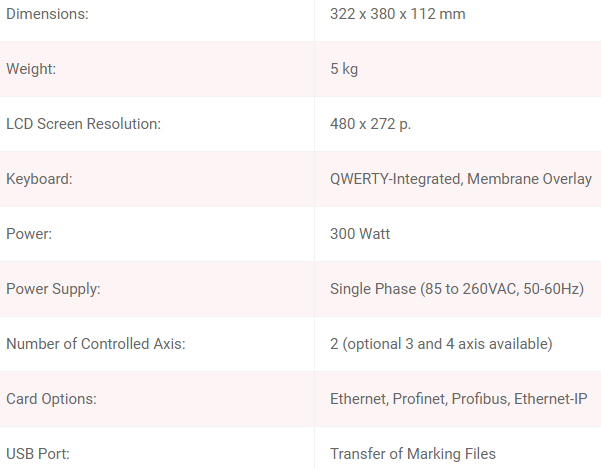

Electronics Features

The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected from harsh elements such as water, chemicals, dust, and material fragments.

Marking files can be up/downloaded from a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.
