SYLVAC Digital Caliper S_Cal EVO BT Deep Measurement

SYLVAC Digital Caliper S_Cal EVO BT Deep Measurement thumbnail

The newly launched Sylvac S_Cal EVO BT DM (Deep Measurement) is derived from EVO series with specially purposed jaw designed for high precision measurement with cost-effective approach which adheres to DIN 862. These calipers comprise a calibrated scale with a fixed jaw, factory calibrated and a pointer jaw, that slides along the lightweight vernier scale. When the pointer is between two markings, you can easily interpolate the jaw to improve the precision of the reading with constant force. The IP67 certified electronics is built to withstand direct contact of water, humidity, coolant and oil while its vernier body made of stainless steel frame with smooth grey enamel finish for protection against…

Read more

Contact us for more information :

+62 21 62 63 851 / 52
marketing@yakinmaju.com

The newly launched Sylvac S_Cal EVO BT DM (Deep Measurement) is derived from EVO series with specially purposed jaw designed for high precision measurement with cost-effective approach which adheres to DIN 862. These calipers comprise a calibrated scale with a fixed jaw, factory calibrated and a pointer jaw, that slides along the lightweight vernier scale. When the pointer is between two markings, you can easily interpolate the jaw to improve the precision of the reading with constant force. The IP67 certified electronics is built to withstand direct contact of water, humidity, coolant and oil while its vernier body made of stainless steel frame with smooth grey enamel finish for protection against corrosion and scratch.

By investing on Sylvac S_Cal EVO BT DM, you can save money on working with routines which previously demand multiple gauging instrument. The special jaw is calibrated for highly repetitive value on measuring internal dimensions, external dimensions by its lower jaws, and in many cases depth by the use of a the depth probe that is attached to the movable head and slides along the centre of the body. Sylvac Digital Caliper's probe is slender and can get into deep grooves that is difficult on comparable brands which use a thin-elastic probe. Its large LCD screen along with 2 modes button also facilitate your operator when working in busy queue.

Sylvac S_Cal EVO BT DM features:

  • Integrated Bluetooth® Smart data transmission
  • Long internal jaws for deep measurements
  • Programmable button according to your needs
  • Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 according to IEC 60529
  • Automatic wake-up by moving the electronic on his frame. (Absolute System S.I.S)
  • Sleeping mode after 20 min. of no use. (Absolute System S.I.S)
  • Position memorized in sleeping mode, Absolute System S.I.S*
  • Maximum speed of displacement : 2.5 m/sec
  • Mechanical frame in stainless steel, hardened and grinded
  • Great comfort of use thanks to its ergonomic frame



To serve your interest on various Sylvac solutions, kindly contact our Sales Department

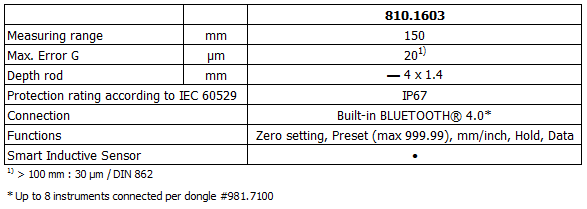

Sylvac S_Cal EVO BT DM (Deep Measurement)
