Since 1929, WIDIA is a company of German origin which innovate tungsten carbide application on cutting-tools. WIDIA holds the world’s first patent for coating indexable inserts, taps and mills with coated grades. Widia devices High-Performance tooling system for robust accuracy tapping on work-piece made of cast iron, solid steel and stainless steel.

Widia deliver you the reliably innovative tooling system which both improves your company's fabrication system and reasonably priced as well.

Types of body available for WIDIA™ shoulder mills M690 Series :

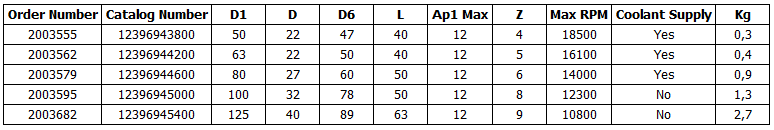

1. WIDIA™ Shell Mills SD1204, which features:

Four cutting edges for precision cutting.
90° shoulders with coated carbide allows spartan performance.
Excellent for slot and profile milling.
Standard milling cutters will accept insert nose radius up to 2mm without modification.
Common insert replacement part.

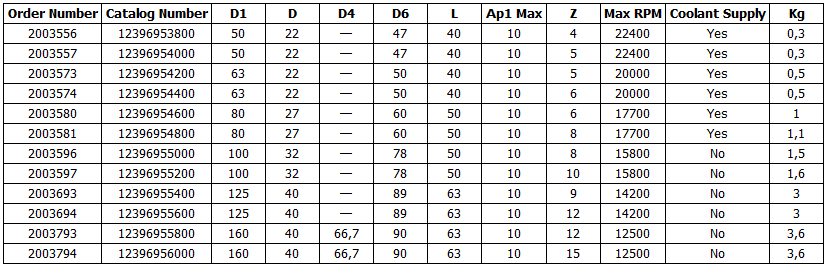

2. WIDIA™ Shell Mills SD1506, which features:

Four cutting edges.
90° shoulders.
Excellent for slot and profile milling.
Designed to withstand operation at higher temperature as operated with trough coolant.
Common insert replacement parts.

To serve your interest on Widia products, kindly contact our Sales Department

WIDIA™ Shoulder Mills M690 Series 1506
