Since 1929, WIDIA is a company of German origin which innovate tungsten carbide application on cutting-tools. WIDIA holds the world’s first patent for coating indexable inserts, taps and mills with coated grades. Widia devices High-Performance tooling system for robust accuracy tapping on work-piece made of cast iron, solid steel and stainless steel.

WIDIA Manchester WMT™ Integral turning, grooving tool holders and carbide inserts are the complete package for convenience and performance in turning, grooving, and cut-off applications. Achieve up to 180% greater productivity from this double-ended system with outstanding grade and chip breaker features, get outstanding system rigidity and clamping, operator-friendly insert indexing from the double-V shape means excellent insert positioning, enjoy excellent chip control in each application as well as achieve finer surface finishes, and long, reliable tool life.

WIDIA Manchester WMT™ Integral Turning Features:

Do turning, face grooving, facing, grooving, and cut-off applications with this one tool
One system with two cutting edges designed especially for increased speeds and feeds
Use in all OD and ID applications
Exceptionally fast cycle times with no turret indexes
Reduce machine set-up time and tooing inventory
Tool holders available in integral, ID integral, and modular styles

To serve your interest on Widia products, kindly contact our Sales Department

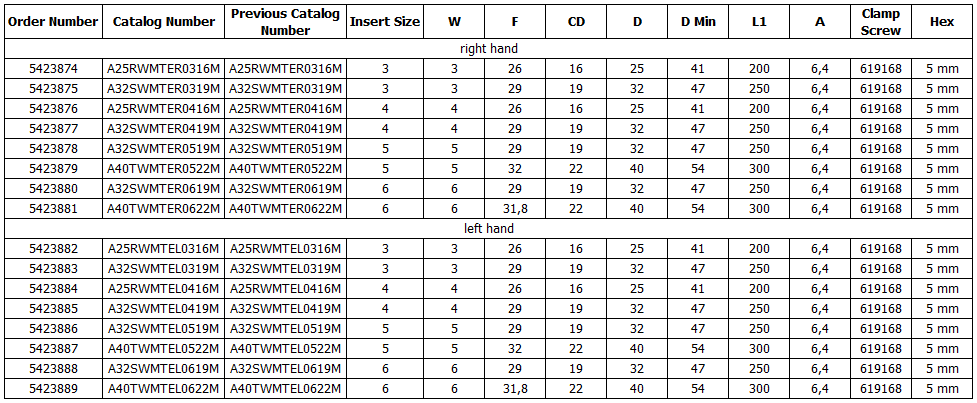

WIDIA Manchester WMT™ Integral Turning Ordering Guide:

WIDIA Manchester WMT™ Integral Turning Inserts Selection Model:

WIDIA Manchester Inserts	Model	Application
	-PH style	• Complement to the -PT plunge and turn geometry. • Provides excellent chip control in materials greater than 35 Rockwell. • Performs in heavily interrupted cuts. • Available in molded or precision ground seat 3-6.
	-PT style	• Available in precision molded or precision ground seat 2-8. • High positive rake geometry for lower cutting forces, cuts in both axial and radial direction. • Lower cutting forces. • Excellent chip cross compression for evacuation and good surface quality. • Excellent turning capabilities.
	-PC style	• Full nose radius geometry for plunge and contour operations. • Molded and precision ground, seat size 3-8. • Excellent chip breaking when profiling. • Effective cutting edge exceeds 180º for increased versatility. • Good chip control at light feed rates.
	-CM style	• Available with or without wiper. • Width from 1,5mm-4,00mm. • Lead angles 00,50,120. • Excellent chip cross compression for evacuation and good surface quality • Neutral, left-hand, and right-hand.
