MRJ Dynamic Focusing Fiber Laser Marking Machine 3D20C

MRJ-FL-3D20C

Dynamic focusing fiber laser marking machine

Equipment Introduction:

Model MRJ-FL-3D20C dynamic focusing fiber laser marking machine can be applied to any curved surface, sphere, step and irregular surface marking;

The laser focal length can be changed through the focusing axis, can also realize deep carving, to meet all 3D marking requirements;

Equipped with MM3D dynamic focus control software designed by Eastern Logic Inc, to realize high precise marking on any shaped objects;

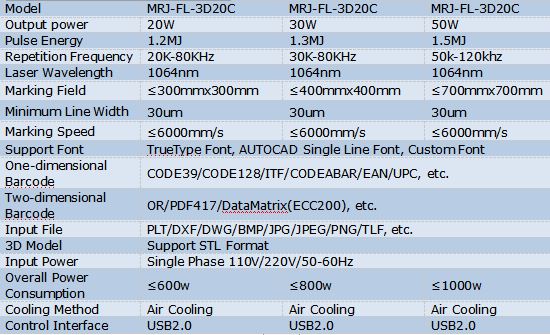

System Characteristic:

The max marking field is 400x400mm, the max scan height is 130mm;

The galvanometer scanner focus beam size is 50mu, response speed can meet precision filling up to 5000mm/s;

Support 3D model importing, and 2D graphics can be directly coated or projected on the built-in commonly used curved surface;

Adopted the integrated structure, small size, fine sealing, to ensure the stability of long time working.

To serve your interest on MRJ Dynamic Focusing Fiber Laser Marking Machine, kindly contact our Sales Department
